LibreServo v2.2. Pre-Release version?

Pre-final version. This was going to be the final version, was going to be, because in the end it is not going to be.

  • The oscillator has been changed for a more compact one.
  • The position of several components has been slightly reworked
  • Ground planes have been generated on the outer layers
  • The position of the silk-screen printing has been repositioned with the idea that the vias will be capped and it will be possible to silkscreen on top of them
  • The PCB has been narrowed by a few tenths of a millimeter to fit perfectly to the servomotors
  • The two PCBs have been joined by using mouse-bites

In general, they are all small changes, but... just before placing the order I went back to review each and every one of the components, and there is one that I have decided to change and it is a very important one that has been in LibreServo from the beginning. In the next article I will unveil the final change 😉

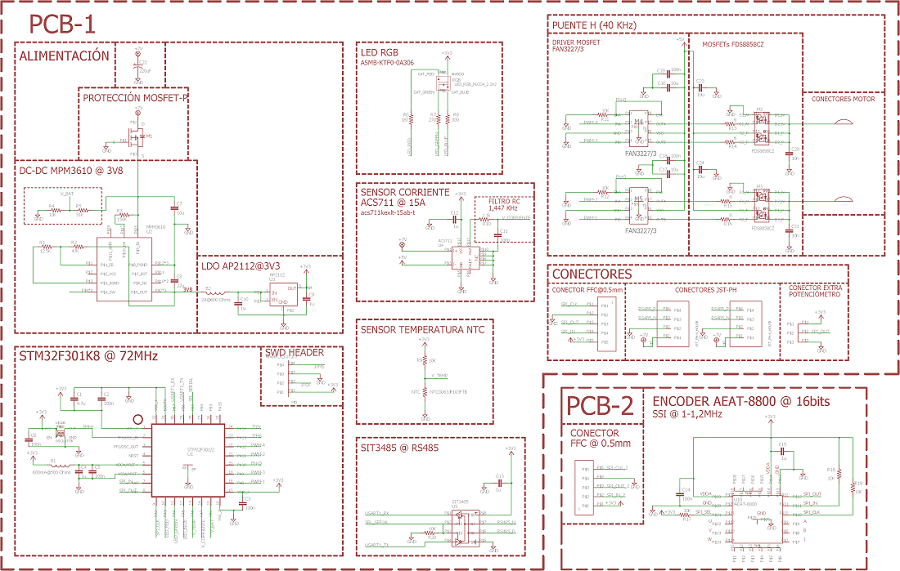

LibreServo v2.2 Schematic

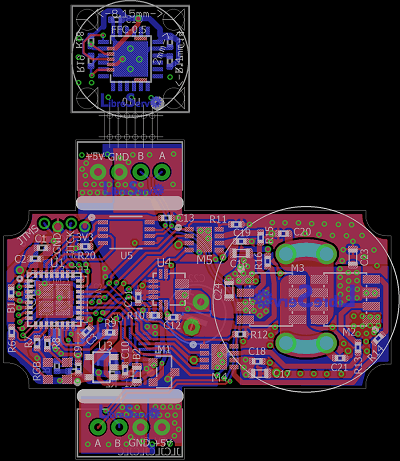

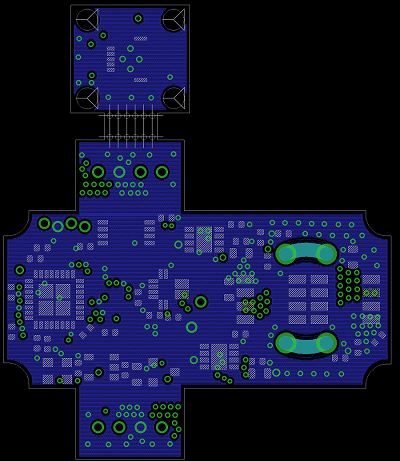

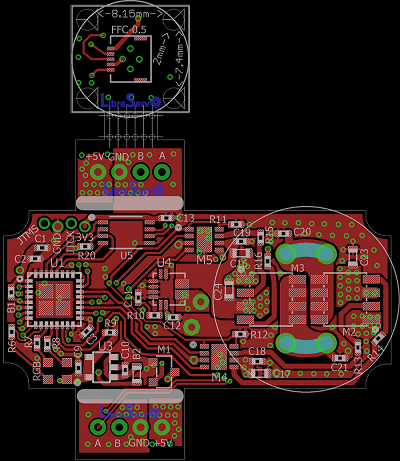

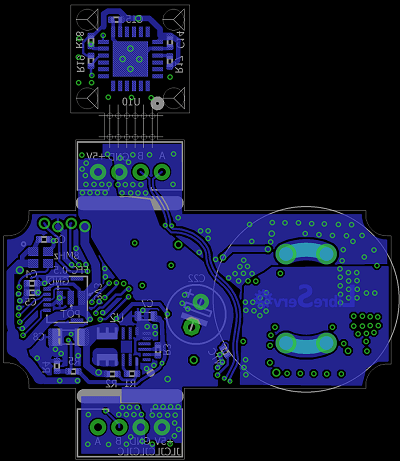

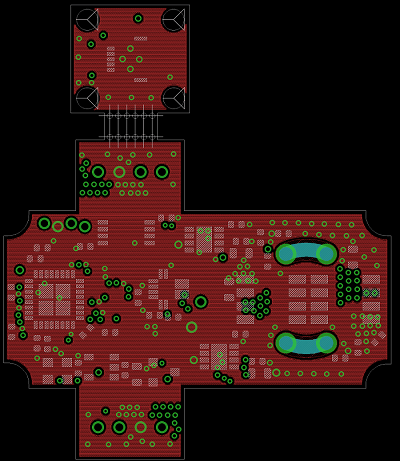

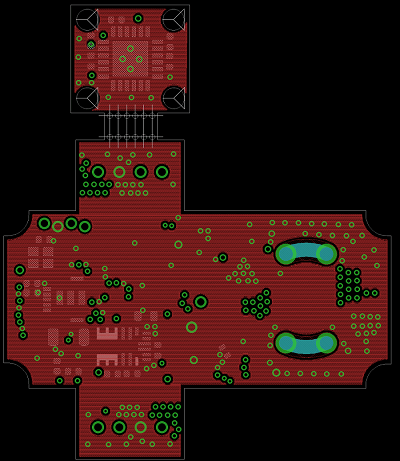

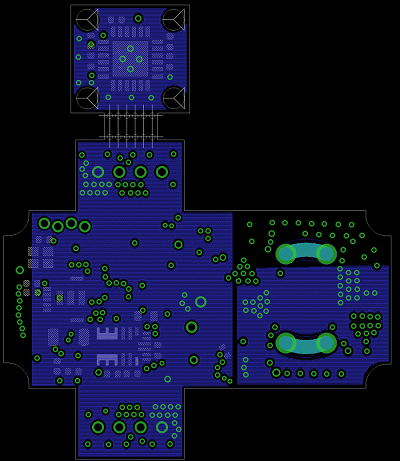

LibreServo v2.2 PCB Gallery
